The plastic recycling granulating line is mainly used for recycling waste plastic barrels, plastic basins, plastic chairs, plastic toys, and other hard plastics. This plastic recycling pelletizing machine integrates crushing and cleaning, drying, granulating, and bagging, and is a professional piece of equipment for recycling waste plastics.
Mientras tanto, Shuliy Machinery puede colocar e instalar la línea de reciclaje de escamas de PP PE de acuerdo con los requisitos del cliente.
Introduction of Plastic Recycling Granulating Line

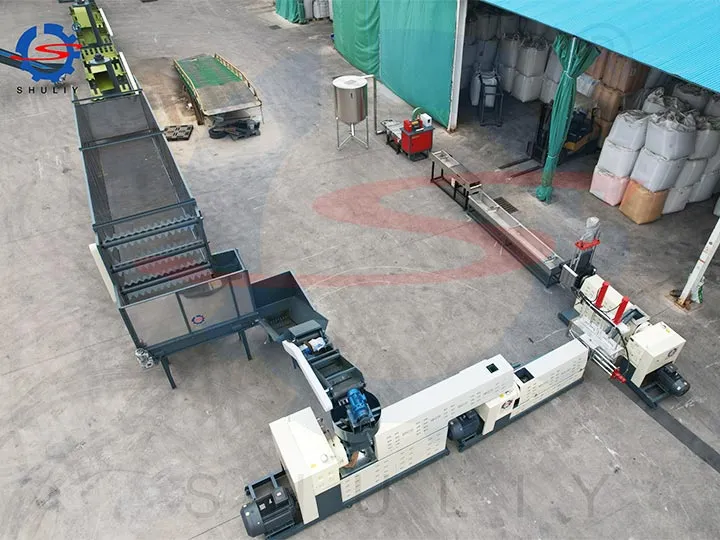

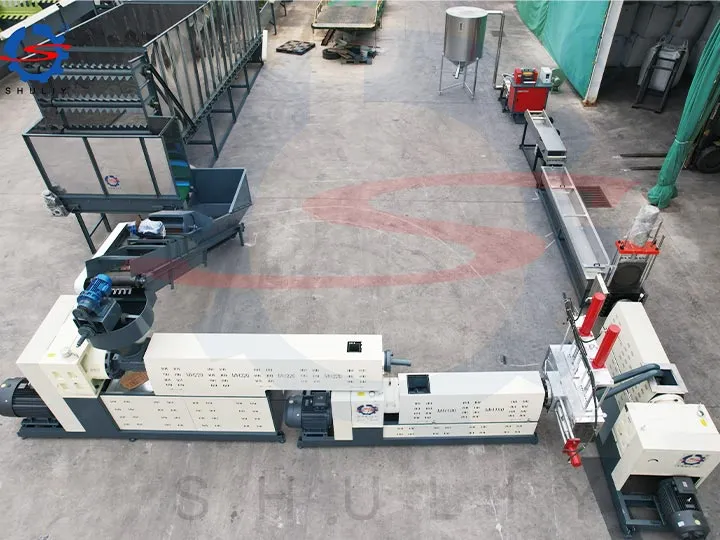

The plastic recycling granulating line mainly consists of a plastic crusher machine, a plastic rinsing tank, a plastic pellet making machine, a cooling tank, and a plastic granule cutter. The PP PE flake recycling line realizes highly automatic production, which can turn hard plastics into recycled plastic pellets and save labor.

Shuliy Machinery has focused on plastic recycling granulating lines for more than ten years and has rich experience in manufacturing plastic recycling machinery. Very welcome to visit our factory.

Plastic Recycling Pelletizing Machine Process
Crushing – Cleaning – Drying – Melting – Extrusion Granulation – Pelletizing Cutting



- Firstly, the hard plastic materials, such as waste plastic basins, buckets, and toys, are broken down into pieces and flakes through a plastic shredder machine.
- Secondly, a plastic washing machine will clear the impurities such as dust and dirt.
- Thirdly, a horizontal dewatering machine is used for dehydrating and drying plastic chips after cleaning.

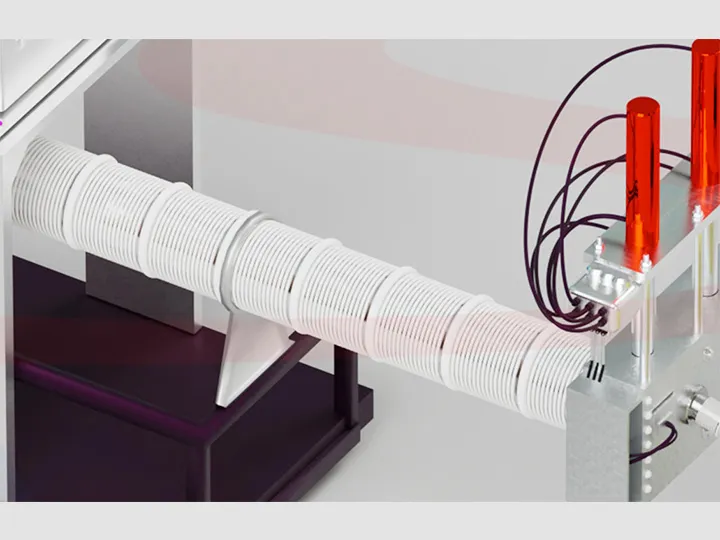

- Then, the flakes firstly enter into feeding conveyor and then they are melted with electromagnetic heating to transform pieces from a solid to a molten state.
- After that, the screw inside the plastic recycling granulator is used to apply pressure to the paste, pushing it through the head die to be extruded into strips.
- Lastly, the extruded plastic is rapidly cooled down and cured through a cooling device, such as a cooling water tank or an air-cooling system, and then cut into homogeneous pellets by a pelletizing device according to a preset size.


Working Video of Plastic Recycling Granulating Line in Action
Application of Plastic Recycling Granulating Machine
La línea de granulación de reciclaje de plástico es una solución diseñada para reciclar plásticos duros como tambores de plástico, ollas de plástico, sillas de plástico, paletas de plástico, cestas de frutas, contenedores de plástico, etc. La línea de granulación de reciclaje de plástico puede convertir los plásticos duros directamente en gránulos de plástico reciclado para lograr plástico. reciclaje.




If your raw material is not covered above, or you would like to confirm its suitability for this PP and PE plastic flakes pelletizing line, please feel free to leave a message via the website. We will contact you in time.
Working Principle of Plastic Recycling Granulating Line
The core principle of thermoplastic molding of plastic recycling granulating line is the reversible physical properties of heating and melting and cooling and solidification with the help of plastic materials. When the waste plastic enters the granulator, the heating system warms it up to above the melting point.
After that, it is transformed from solid state to viscous fluid melt, and then the screw rotates and pushes the pressure, so that the melt is uniformly plasticized and extruded through the die。
Finally, it is rapidly cured in the cooling system, and finally cut into pellets according to the specifications by the plastic strip cutting machine.
The whole process of the plastic recycling granulating line is only a physical phase transition without chemical structure destruction, thus realizing the recycling of waste plastics.


Main Machine of Plastic Waste Recycling Plant

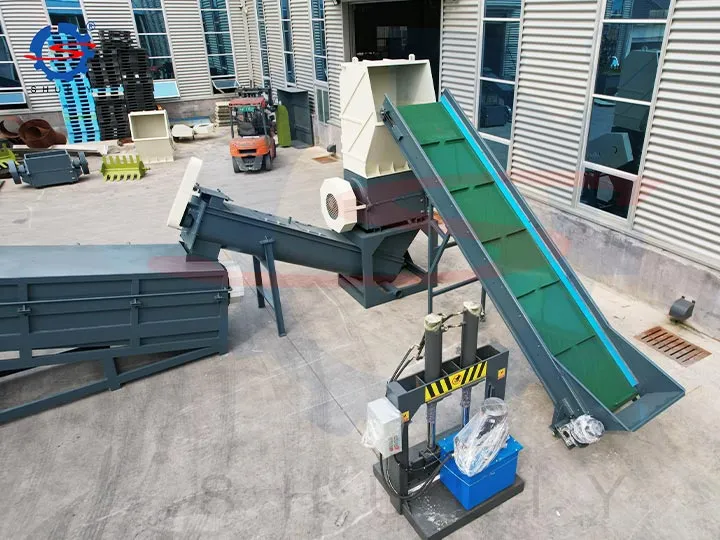

Step 1: Máquina trituradora de plástico
The plastic shredder machine can easily crush hard plastics into small-sized materials, thus reducing transportation costs and facilitating subsequent plastic pelletizing.

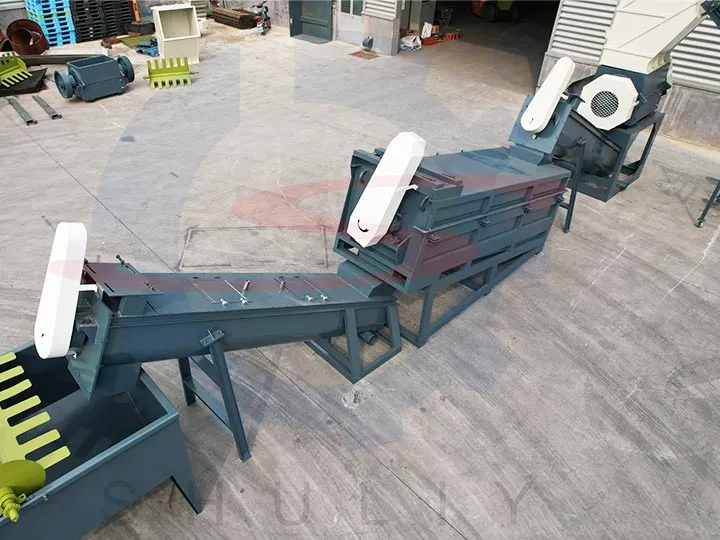

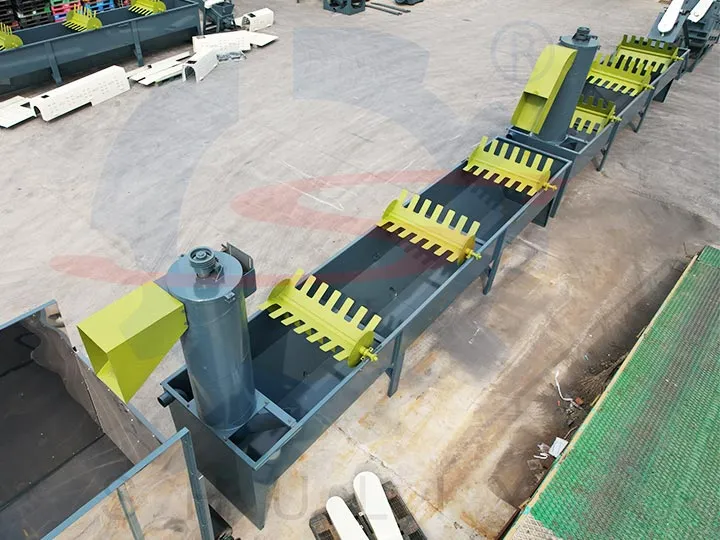

Step 2: lavadora de plastico
The plastic washing machine is used to rinse the crushed materials with the spiral device at the bottom to remove the sediment and other impurities and further ensure the cleanliness of plastic chips and improve the quality of recycled pellets.

Step 3: Máquina deshidratadora horizontal
La máquina deshidratadora horizontal se utiliza para secar los materiales limpios. Debido a que la humedad en el material provocará burbujas en la masa fundida y afectará la calidad de la granulación, los desechos deben secarse antes de procesarlos.

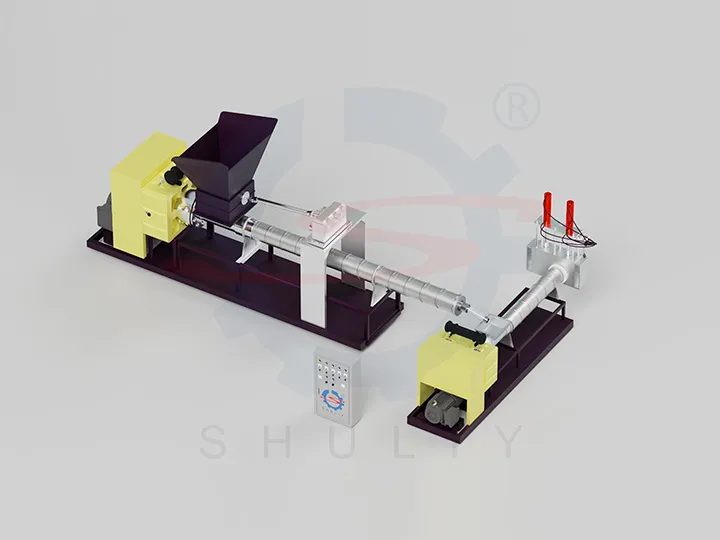

Step 4: Máquina granuladora de plástico
El material triturado y seco se funde en la máquina peletizadora de plástico y se extruye en tiras largas a través del cabezal de troquel. La máquina granuladora de plástico es el equipo más importante en la línea de granulación de reciclaje de plástico.

Step 5: Máquina cortadora de tiras de plástico
The plastic strip cutting machine cuts long strips of cooled plastic into small, uniform pellets. Various machine models are available to meet different output requirements.
The exact configuration of the machine can be adapted to your needs. You are welcome to contact us for specific questions about the plastic recycling granulating line.
Why Buy Our Plastic Recycling Pelletizing Machine?

- Los gránulos de plástico producidos en las máquinas peletizadoras de reciclaje de plástico son de alta calidad, no tienen burbujas de aire, son llenos y redondos, y el tamaño y el grosor de los gránulos cortados por la máquina cortadora de gránulos de plástico se pueden ajustar.
- The crushing system adopts a wear-resistant design to ensure the long-term, continuous, and stable operation of the system
- High-speed centrifugal cleaning system with a suitable rotating speed for different materials to apply the corresponding blade hitting strength, good cleaning effect
- La máquina peletizadora para reciclaje de plástico se controla automáticamente y es una línea de ensamblaje completamente automática, que realiza la transformación directa de plástico de desecho a pellets terminados.
- En cuanto al cilindro del tornillo, está hecho de acero estructural al carbono importado de alta resistencia, que tiene la característica de durabilidad.
- La apariencia de la máquina es hermosa y elegante y se puede pintar según los requisitos del cliente.

FAQ of plastic flake pelletizing line
What is the difference between PP and PE plastic?
First of all, the composition of the two is different; the main component of PP plastic is polypropylene, and PE plastic is the main component of PE plastic is polyethylene.
Secondly, the characteristics of PP and PE plastic are different. PP plastic strength, stiffness, and hardness heat resistance are better than PE and can be used at about 100 ℃. Has good dielectric properties and high-frequency insulation and is not affected by humidity, but at low temperatures becomes brittle, not wear-resistant, and easy to age. PE plastic extensibility, tear-resistance and impact resistance, high transparency, heat sealing, and processing performance.
What is the function of a horizontal dewatering machine?
Because if water is left on the surface of the plastic pieces, the water will be vaporized into bubbles by heat, resulting in the production of pellets with bubbles, voids and other defects, seriously affecting the quality of the pellets.
Can the plastic recycling granulating line produce granules of different sizes?
We can provide you with different models of machines according to your actual production needs, so that you can produce plastic pellets of the size you need.

Inquiry about Plastic Pelletizing Line
Disponemos de equipos especializados para el reciclaje de plástico a la venta, todo a precios de mayorista. Si desea montar una planta de reciclaje de residuos plásticos, deje un mensaje en el sitio web. Te podemos ayudar.
Shuliy PP PE Flake Recycling Line Factory Show





Cases of PE Plastic Flakes Pelletizing Line Exports

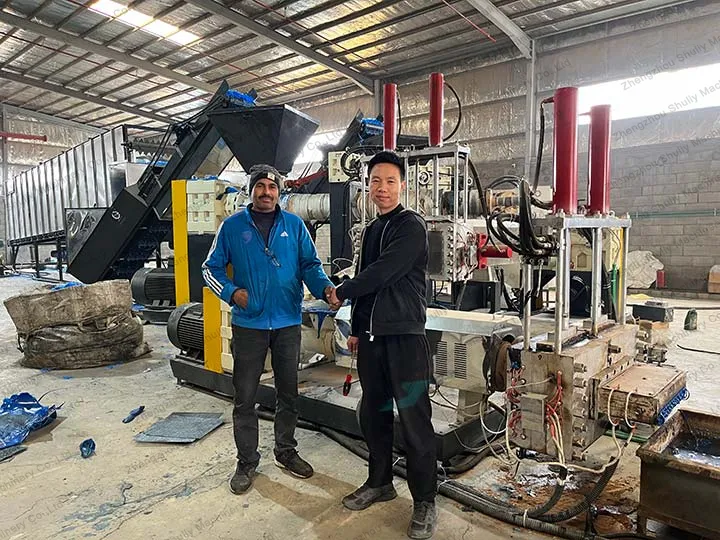

A 1 ton/hour capacity plastic pelletizing line from Shuliy Group has been successfully installed in Saudi Arabia.
The plastic recycling granulating line can process raw materials such as plastic film to produce recycled plastic pellets. The main equipment includes crusher, granulator, etc., which was installed by Schulich engineers on site.

Shuliy provided customized capacity, machine color and one-year warranty, and also supported the project with transportation protection and on-site technical guidance to meet the customer’s high output requirements with the plastic recycling granulating line.
